Ambienta Cubicle™- Restroom Compartments
Cubicle Hardware
Ambienta Cubicle Hardware is supplied in Stainless Steel as standard. The standard hardware system is supplied complete with fixings to fit pre-drilled and pre-machined doors, pilasters and divider panels.
Powder coated aluminum and bespoke hardware is available
Hardware Components

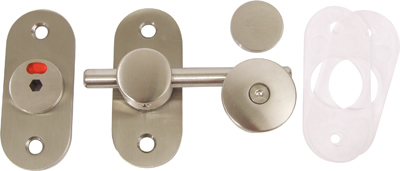

The door latch or indicator bolt is designed to fit in both the glass and phenolic material options providing a flush finish between door and pilaster and is fully ADA compliant.
A plastic gasket sits between the hardware components and the glass or phenolic to provide the strongest possible connection.
Door Latch Features
- Throw-over pattern
- Vacant/engaged indicator
- Emergency release
- Clear plastic spacers
- Fixings included
- Stainless steel, grade 316

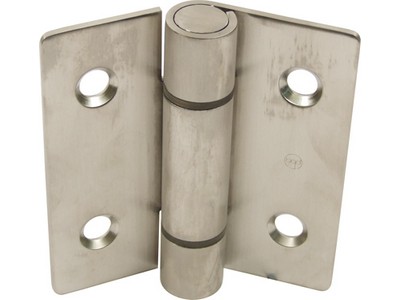

The cubicle door hinges are supplied with patch plate and fixings and can be supplied as "sprung" or "unsprung". The sprung hinge has adjustable close speed.
Cubicle Hinge features:
- For sprung version; adjust closing speed to users requirements
- Vacant/engaged indicator
- Clear plastic spacers
- Fixings included
- Stainless steel, grade 316
The adjustable support pedastal is attached to the floor beneath the pilaster and the divider panels. The standard ground clearance is 6" and can be adjusted up or down by 1-1/4" to accomodate uneven floor surface, providing a more private compartment with virtually no floor obstructions.
The small pedastal foot print makes for easy cleaning
Pedestal features:
- Support for divider and pilaster panels
- Height adjustable between 135 mm and 165 mm
- Clear plastic spacers
- Fixings included
- 2-year product warranty
- Stainless steel, grade 316
The headrail itself is a 1" diameter ss tube that is fixed above the divider panels and pilasters using the Headrail Fastener. The fastener slides over the headrail tube
The small pedastal foot print makes for easy cleaning
Headrail features:
- Secures headrail to glass division panel
- Slides over headrail and secured by fixings
- Clear plastic spacers
- Fixings included
- 2-year product warranty
- Stainless steel, grade 316
The divider panel is secured to the wall and the pilaster with "L" panel clips.
The small pedastal foot print makes for easy cleaning
Panel Clip features:
- Secures divider panel to glass pilaster at 90º
- Clear plastic spacers
- Fixings included
- 2-year product warranty
- Stainless steel, grade 316
The following image illustrates the glass connections. Pilaster to Wall, Pilaster to End Divider Panel and Pilaster to Intermediate Divider Panel
